Scheduling background jobs

By Rahul Tyagi

Objective: Scheduling a background job in SAP R/3. These document intents to provide steps which can be done even by an end user to prepare a Job.

Main Steps:

1.     Change screen layout of stock report as per the requirement.

2.     Create variant to run the stock report (MB52) via Job.

3.     Access transaction code SM36 (Job creattion) to create the Job.

4.     Monitor the Job and check the spool by SM37 (Job overview)

5.     Access SAP Business Work place to check the Spool.

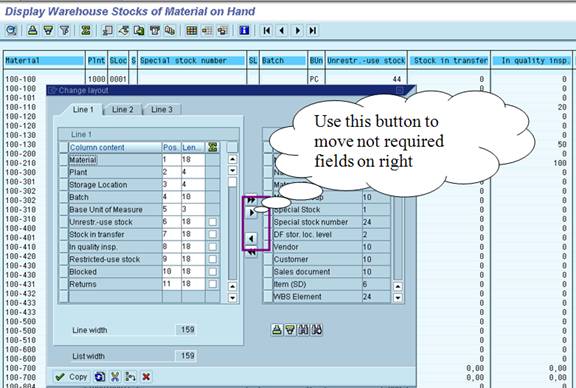

Step1: Create Screen layout

Assumption: Go to transaction MB52 and enter the value of the Plant (let’s say 1000).

Step 2: Create Variant along with the layout which we have created in previous step.

Press F4 on the layout field in initial screen and then press save.

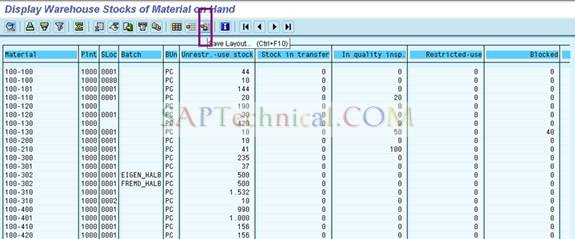

After selecting the layout here please click on save.

Step 3: Please mention the variant name as per your choice and also mention the description.

You may also mark the check-box protect variant for the field plant and layout though it’s not mandatory.

Save

Step 4: Finding the program name for transaction code MB52

Now please notice the Program name RM07MLBS.

Step 5: Log in transaction code SM36.

Mention the Job name as ZDaliystk_MB52_1000.

Press enter to get the below screen

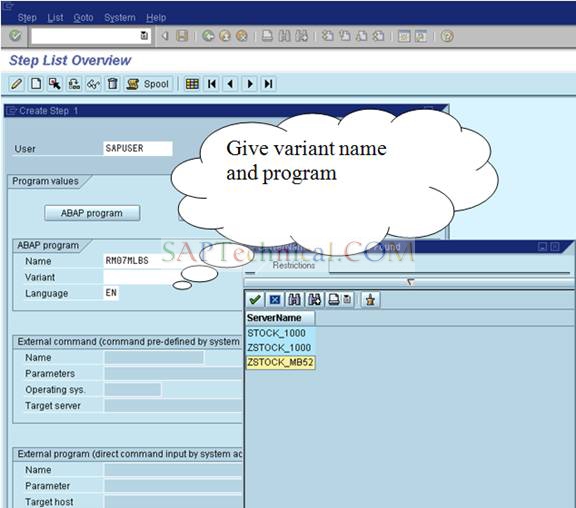

Click on the ABAP program and mention the program and also select the variant name which was created in initial steps.



Click on check and save

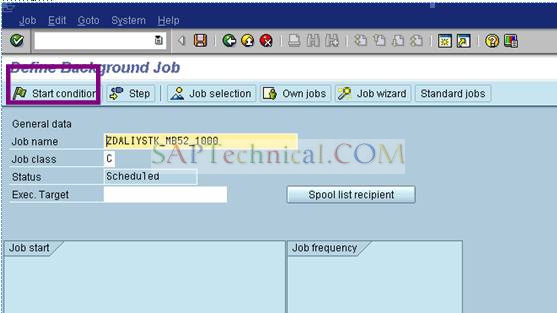

Step 6: Now click on the start condition button.

In this step we are giving the frequency of running the job. As already mentioned the Job needs to run daily basis.

click on the period values button  and also mark the period check box as the job has to run every day.

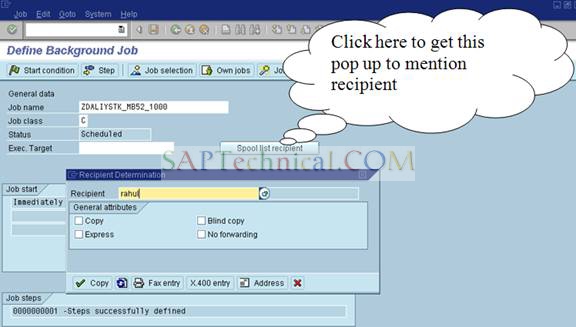

Click on the spool recipient button

Just press enter and save to get the message that job is in release status

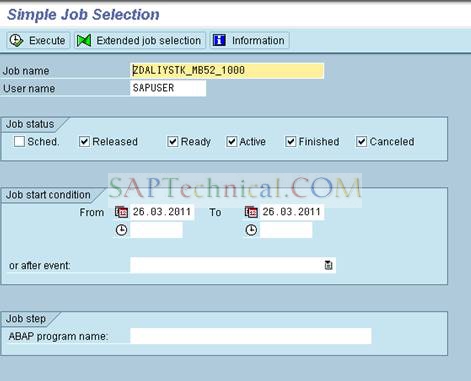

Monitor and check the output of job. Access transaction code SM37.

Also mention the Job name



execute and check the spool.

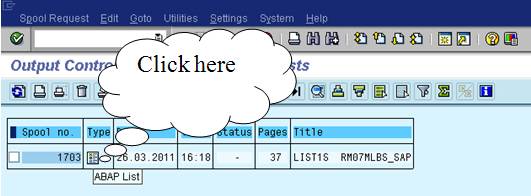

click on the type

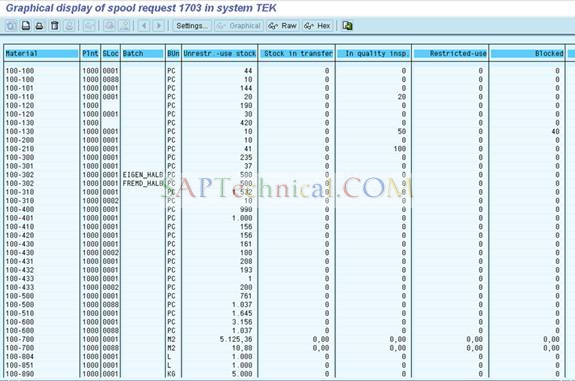

Step 7: Here we are with the results which is list of stock in our case

• You can find the information relating to scheduling at these below tables.

E.g. In order to get the schedule period of a program, we can do as following:

TCPCP-PROGNAME to get the Jobname and Jobcount.

Then use the jobname, jobcount to get the schedule period in the table TBTCS.

Background Job Scheduling Tables:

TBTCS (Background Processing: Time Schedule Table):

Field	Data Element	Data Type	length (Decimals)	Checktable	Description
JOBNAME	BTCJOB	CHAR	32		Background job name
JOBCOUNT	BTCJOBCNT	CHAR	8		Job ID
BTCSYSTEM	BTCTGTSYS	CHAR	32		Target System to Run Background Job
JOBGROUP	BTCJOBGRP	CHAR	12		Summary of jobs for a group
INTREPORT	BTCREP	CHAR	40		Name of internal report for batch job
SDLSTRTDT	BTCSDATE	DATS	8		Planned Start Date for Background Job
SDLSTRTTM	BTCSTIME	TIMS	6		Planned start time for background Job
PRDMINS	BTCPMIN	NUMC	2		Duration period (in minutes) for a batch job
PRDHOURS	BTCPHOUR	NUMC	2		Duration period (in hours) for a batch job
PRDDAYS	BTCPDAY	NUMC	3		Duration (in days) of DBA action
PRDWEEKS	BTCPWEEK	NUMC	2		Duration period (in weeks) for a batch job
PRDMONTHS	BTCPMNTH	NUMC	2		Duration period (in months) for a batch job
PERIODIC	BTCPFLAG	CHAR	1		Periodic Jobs Indicator
DELANFREP	BTCDELFLAG	CHAR	1		Job deletion indicator after processing
EMERGMODE	BTCEFLAG	CHAR	1		Emergency Job operation indicator (content 'X')
SDLUNAME	BTCSDLNM	CHAR	12		Initiator of job/step scheduling
AUTHCKNAM	BTCAUTHNAM	CHAR	12		Background User Name for Authorization Check
AUTHCKMAN	BTCAUTHMAN	CLNT	3	*	Background client for authorization check
SUCCNUM	BTCSNUM	INT4	10		Number of successor job(s)
EOMCORRECT	BTCEOMCORR	INT4	10		Correction field for calc. job execution (end-of-mth, cal.)
JOBCLASS	BTCJOBCLAS	CHAR	1		Job classification
PRIORITY	BTCJOBPRIO	INT4	10		Job priority
EXECSERVER	BTCSRVNAME	CHAR	20		Server name
CALCORRECT	BTCEOMCORR	INT4	10		Correction field for calc. job execution (end-of-mth, cal.)
TGTSRVGRP	BPSRVGRPN	CHAR	40		Server Group Name Background Processing

TBTCP (Background Job Step Overview Table)

Field	Data Element	Data Type	length (Decimals)	Checktable	Description
JOBNAME	BTCJOB	CHAR	32		Background job name
JOBCOUNT	BTCJOBCNT	CHAR	8		Job ID
STEPCOUNT	BTCSTEPCNT	INT4	10		Job step ID number.
PROGNAME	BTCPROG	CHAR	40		Program name within a step (e.g. report)
PROGFROMLN	BTCSRCLINE	INT4	10		Line number in an internal report.
PROGTOLN	BTCSRCLINE	INT4	10		Line number in an internal report.
SDLDATE	BTCSDLDATE	DATS	8		Date of job/step scheduling
SDLTIME	BTCSDLTIME	TIMS	6		Time of a scheduled job/step
SDLUNAME	BTCSDLNM	CHAR	12		Initiator of job/step scheduling
VARIANT	BTCVARIANT	CHAR	14		Name of variant within a step
AUTHCKNAM	BTCAUTHNAM	CHAR	12		Background User Name for Authorization Check
LISTIDENT	BTCLISTID	NUMC	10		ID of batch job output list in the spool
XPGPID	BTCXPGPID	CHAR	10		ID of external program
XPGTGTSYS	BTCTGTSYS	CHAR	32		Target System to Run Background Job
XPGRFCDEST	RFCDEST	CHAR	32	*	Logical Destination (Specified in Function Call)
XPGPROG	BTCXPGPGM	CHAR	128		Name of external program (possibly with access path)
XPGPARAMS	BTCXPGPAR	CHAR	255		Parameters of external program (string)
XPGFLAG	BTCSTEPTYP	CHAR	1		Identification of step as ABAP, ext. command or program
CONNCNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
STDINCNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
STDOUTCNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
STDERRCNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
TRACECNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
TERMCNTL	BTCXPGCNTL	CHAR	1		Control flag for external program (e.g. trace level)
STATUS	BTCPSTATUS	CHAR	1		Status of step in background processing
EXITCODE	BTCXPGEXIT	INT4	10		Exit code of an external program
LANGUAGE	SPRAS	LANG	1	*	Language Key
EXTCMD	SXPGLOGCMD	CHAR	18		Logical command name
OPSYSTEM	SYOPSYS	CHAR	10		Operating System of Application Server
.INCLUDE	PRI_PAROLD				Structure for passing print parameters
PDEST	SYPDEST	CHAR	4	*	Spool Output Device
PRCOP	SYPRCOP	NUMC	3		Number of Spool Copies
PLIST	SYPLIST	CHAR	12		Spool Request
PRTXT	SYPRTXT	CHAR	68		Spool Description
PRIMM	SYPRIMM	CHAR	1		Immediate Spool Print
PRREL	SYPRREL	CHAR	1		Immediate Spool Deletion
PRNEW	SYPRNEW	CHAR	1		New Spool Request
PEXPI	SYPEXPI	NUMC	1		Spool Retention Period
LINCT	SYLINCT	INT4	10		Page Length of List
LINSZ	SYLINSZ	INT4	10		Line width of list
PAART	SYPAART	CHAR	16	*	Spool Format
PRBIG	SYPRBIG	CHAR	1		Spool Cover Sheet
PRSAP	SYPRSAP	CHAR	1		Print: SAP cover page
PRREC	SYPRREC	CHAR	12		Spool Recipient Name
PRABT	SYPRABT	CHAR	12		Spool Department Name
PRBER	SYPRBER	CHAR	12		Print: Authorization
PRDSN	SYPRDSN	CHAR	6		Spool File
PTYPE	SYPTYPE	CHAR	12		Print: Type of spool request
ARMOD	SYARMOD	CHAR	1		Print: Archiving mode
FOOTL	SYFOOTL	CHAR	1		Print: Output footer
PRCHK	SYCHECK	INT4	10		Print: Check sum for print and archiving parameters
.INCLUDE	ARC_PARAMS				Structure of Transfer from Archiving Parameters
SAP_OBJECT	SYARC_SAP_OBJECT	CHAR	10	*	Archiving Parameter: Object Type of SAP Object
AR_OBJECT	SYARC_AR_OBJECT	CHAR	10	*	Archiving Parameter: Document Type
ARCHIV_ID	SYARC_ARCHIV_ID	CHAR	2		Archiving Parameter: Target Storage System
DOC_TYPE	SYARC_DOC_TYPE	CHAR	20	*	Archiving Parameter: Document Type
RPC_HOST	SYARC_RPC_HOST	CHAR	32		Archiving Parameter: RPC Host
RPC_SERVIC	SYARC_RPC_SERVIC	CHAR	32		Archiving Parameter: RPC Service/RFC Destination
INTERFACE	SYARC_INTERFACE	CHAR	14		Archiving Parameter: Communication Connection Component
MANDANT	SYARC_MANDANT	CLNT	3	*	Archiving Parameter: Client
REPORT	SYARC_REPORT	CHAR	40	*	Archiving Parameter: Program Name
INFO	SYARC_INFO	CHAR	3		Archiving Parameter: Info Field
ARCTEXT	SYARC_ARCTEXT	CHAR	40		Archiving Parameter: Text Information Field
DATUM	SYARC_DATUM	CHAR	8		Archiving Parameter: Archiving Date
ARCUSER	SYARC_ARCUSER	CHAR	12		Archiving Parameter: User
PRINTER	SYARC_PRINTER	CHAR	4	*	Archiving Parameter: Target Output Device
FORMULAR	SYARC_FORMULAR	CHAR	16		Archiving Parameter: Output Format
ARCHIVPATH	SYARC_ARCHIVPATH	CHAR	70		Archiving Parameter: Standard Path
PROTOKOLL	SYARC_PROTOKOLL	CHAR	8		Archiving Parameter: Log
VERSION	SYARC_VERSION	CHAR	4		Archiving Parameter: Version Number
ACHECK	SYARC_CHECK	INT4	10		Archiving Parameter: Check Total
PRIPARKEY	SYPRKEY	CHAR	16		Key for print parameters
CONVID	GWY_CONVID	CHAR	8		Conversation ID

TBTCO (Job Status Overview Table)

Field	Data Element	Data Type	length (Decimals)	Checktable	Description
JOBNAME	BTCJOB	CHAR	32		Background job name
JOBCOUNT	BTCJOBCNT	CHAR	8		Job ID
JOBGROUP	BTCJOBGRP	CHAR	12		Summary of jobs for a group
INTREPORT	BTCREP	CHAR	40		Name of internal report for batch job
STEPCOUNT	BTCSTEPCNT	INT4	10		Job step ID number.
SDLSTRTDT	BTCSDATE	DATS	8		Planned Start Date for Background Job
SDLSTRTTM	BTCSTIME	TIMS	6		Planned start time for background Job
BTCSYSTEM	BTCTGTSYS	CHAR	32		Target System to Run Background Job
SDLDATE	BTCSDLDATE	DATS	8		Date of job/step scheduling
SDLTIME	BTCSDLTIME	TIMS	6		Time of a scheduled job/step
SDLUNAME	BTCSDLNM	CHAR	12		Initiator of job/step scheduling
LASTCHDATE	BTCJCHDATE	DATS	8		Date of last job change
LASTCHTIME	BTCJCHTIME	TIMS	6		Time of last job change
LASTCHNAME	BTCJCHNM	CHAR	12		Last job change made by
RELDATE	BTCRELDT	DATS	8		Release Date for Background Scheduling
RELTIME	BTCRELTM	TIMS	6		Release time of scheduled background job
RELUNAME	BTCRELNM	CHAR	12		User that released scheduled batch job
STRTDATE	BTCXDATE	DATS	8		Job start date
STRTTIME	BTCXTIME	TIMS	6		Batch job start time
ENDDATE	BTCXDATE	DATS	8		Job start date
ENDTIME	BTCXTIME	TIMS	6		Batch job start time
PRDMINS	BTCPMIN	NUMC	2		Duration period (in minutes) for a batch job
PRDHOURS	BTCPHOUR	NUMC	2		Duration period (in hours) for a batch job
PRDDAYS	BTCPDAY	NUMC	3		Duration (in days) of DBA action
PRDWEEKS	BTCPWEEK	NUMC	2		Duration period (in weeks) for a batch job
PRDMONTHS	BTCPMNTH	NUMC	2		Duration period (in months) for a batch job
PERIODIC	BTCPFLAG	CHAR	1		Periodic Jobs Indicator
DELANFREP	BTCDELFLAG	CHAR	1		Job deletion indicator after processing
EMERGMODE	BTCEFLAG	CHAR	1		Emergency Job operation indicator (content 'X')
STATUS	BTCSTATUS	CHAR	1		State of Background Job S: Scheduled R: Released A: Active F: Finished C: Canceled
NEWFLAG	BTCNEWFLAG	CHAR	1		New job ID creation flag
AUTHCKNAM	BTCAUTHNAM	CHAR	12		Background User Name for Authorization Check
AUTHCKMAN	BTCAUTHMAN	CLNT	3	*	Background client for authorization check
SUCCNUM	BTCSNUM	INT4	10		Number of successor job(s)
PREDNUM	BTCPNUM	INT4	10		Number of previous jobs
JOBLOG	RSTSONAME	CHAR	20		TemSe object name
LASTSTRTDT	BTCLSDATE	DATS	8		Latest Execution Date for a Background Job
LASTSTRTTM	BTCLSTIME	TIMS	6		Latest Execution Time for Background Job
WPNUMBER	BTCWPNO	INT4	10		Work process number
WPPROCID	BTCWPPID	INT4	10		Work process ID
EVENTID	BTCEVENTID	CHAR	32		Background Processing Event
EVENTPARM	BTCEVTPARM	CHAR	64		Background Event Parameters (Such as, Jobname/Jobcount)
BTCSYSREAX	BTCTGTSYS	CHAR	32		Target System to Run Background Job
JOBCLASS	BTCJOBCLAS	CHAR	1		Job classification
PRIORITY	BTCJOBPRIO	INT4	10		Job priority
EVENTCOUNT	BTCEVTCNT	CHAR	8		Event number
CHECKSTAT	BTCCKSTAT	CHAR	1		Job status check indicator for subsequent job start
CALENDARID	BTCCALID	CHAR	2		Factory Calendar ID for Background Processing
PRDBEHAV	BTCPRDBHV	CHAR	1		Period behavior of jobs on non-workdays
EXECSERVER	BTCSRVNAME	CHAR	20		Server name
EOMCORRECT	BTCEOMCORR	INT4	10		Correction field for calc. job execution (end-of-mth, cal.)
CALCORRECT	BTCEOMCORR	INT4	10		Correction field for calc. job execution (end-of-mth, cal.)
REAXSERVER	BTCSRVNAME	CHAR	20		Server name
RECLOGSYS	LOGSYS	CHAR	10	*	Logical system
RECOBJTYPE	SWO_OBJTYP	CHAR	10	*	Object Type
RECOBJKEY	SWO_TYPEID	CHAR	70		Object key
RECDESCRIB	SWO_DESCRB	CHAR	10		Describe flag
TGTSRVGRP	BPSRVGRPN	CHAR	40		Server Group Name Background Processing
