Using Global Variables and initialization in Smartforms

Using global definitions, structures and initialization in smartforms

+ -

In the below example we will learn.

• Using global decelerations in smartforms.
• Using user defined structures.
• Using initialization of data.

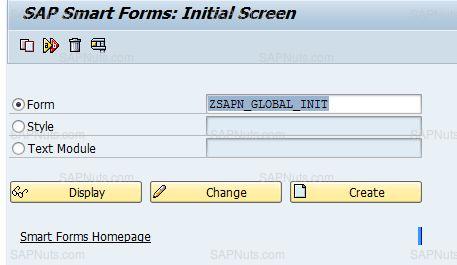

Go to T-code, SMARTFORMS, provide name as ZSAPN_GLOBAL_INIT and click create.

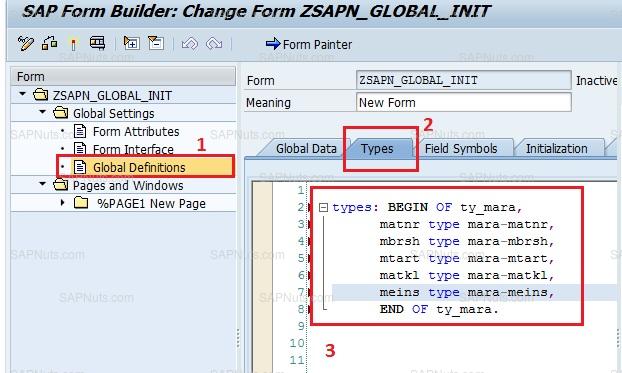

Double click on global definitions, go to types tab and add below code.

types: BEGIN OF ty_mara,
     matnr type mara-matnr,
     mbrsh type mara-mbrsh,
     mtart type mara-mtart,
     matkl type mara-matkl,
     meins type mara-meins,
     END OF ty_mara.

Go to global data tab, create a variable of type ty_mara.

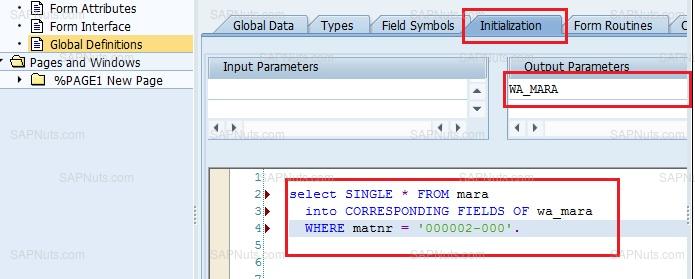

Go to initialization tab, add output parameter as wa_mara, add below code to get material details.

select SINGLE * FROM mara
 into CORRESPONDING FIELDS OF wa_mara
 WHERE matnr = '000002-000'.
**Material no must be in MARA

Expand page, double click on main window, right click on main window -> create -> text.

Go to general attributes tab.

Add a label, click on insert field, a popup will come provide variable name by adding '&' at beginning and ending.

In the same way add other fields also.

Save, activate and execute(F8).

You will go to a function module.

Just execute.

Execute again.

Provide output device as LP01.

Smartform is displayed.
